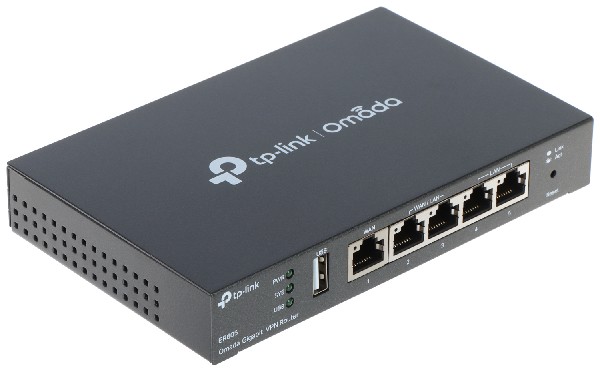

Omada Gigabit VPN Router

Integrated into Omada SDN: Centralized Cloud Management, and Intelligent Monitoring.
Centralized Management: Cloud access and Omada app for ultra convenience and easy management.
Five Gigabit Ports: High-speed wired connectivity.

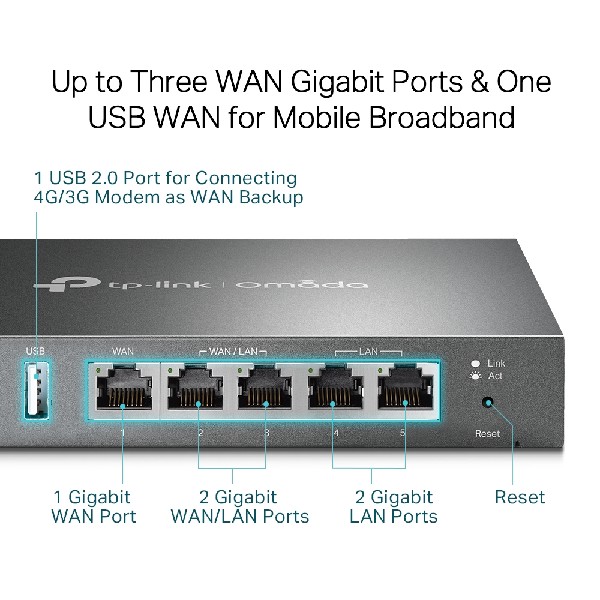

Up to 4 WAN Ports: 1 gigabit WAN port and 3 gigabit WAN/LAN ports with load balance raise the utilization rate of multi-line broadband.
Highly Secure VPN: Supports up to 20× LAN-to-LAN IPsec, 16× OpenVPN^*, 16× L2TP, and 16× PPTP VPN connections.
Abundant Security Features: Advanced firewall policies, DoS defense,IP/MAC/URL filtering, and more security functions protect your network and data.

SECURITY
Access Control	Source/Destination IP Based Access Control
Filtering	WEB Group Filtering^§ URL Filtering Web Security^§
ARP Inspection	• Sending GARP Packets^§ • ARP Scanning^§ • IP-MAC Binding^§
Attack Defense	• TCP/UDP/ICMP Flood Defense • Block TCP Scan (Stealth FIN/Xmas/Null) • Block Ping from WAN

HARDWARE FEATURES
Standards and Protocols	• IEEE 802.3, 802.3u, 802.3ab, IEEE 802.3x, IEEE 802.1q • TCP/IP, DHCP, ICMP, NAT, PPPoE, NTP, HTTP, HTTPS, DNS, IPSec, PPTP, L2TP, OpenVPN, SNMP
Interface	• 1 Fixed Gigabit WAN Port • 1 Fixed Gigabit LAN Port • 3 Changeable Gigabit WAN/LAN Ports
Network Media	• 10BASE-T: UTP category 3, 4, 5 cable (Max 100m) EIA/TIA-568 100Ω STP (Max 100m) • 100BASE-TX: UTP category 5, 5e cable (Max 100m) EIA/TIA-568 100Ω STP (Max 100m) • 1000BASE-T: UTP category 5, 5e, 6 cable (Max 100m)
Button	Reset Button
Power Supply	External 9V/0.85A DC Adapter
Flash	SPI 16MB
DRAM	128 MB
LED	PWR, SYS, WAN, LAN
Dimensions ( W x D x H )	6.2 × 4.0 × 1.0 in (158 × 101 × 25mm)

BASIC FUNCTIONS
WAN Connection Type	• Static/Dynamic IP • PPPoE • PPTP • L2TP
MAC Clone	Modify WAN/LAN MAC Address^†
DHCP	• DHCP Server/Client • DHCP Address Reservation • Multi-net DHCP* • Multi-IP Interfaces*
IPv6	Yes
VLAN	802.1Q VLAN
IPTV	IGMP v2/v3 Proxy

Advanced Features
Access Control	IP/Port/Protocol/Domain Name Filtering
Advanced Routing	• Static Routing • Policy Routing
Bandwidth Control	• IP/Port-based Bandwidth Control • Guarantee & Limited Bandwidth
Load Balance	• Intelligent Load Balance • Application Optimized Routing • Link Backup (Timing^§, Failover) • Online Detection
NAT	• One-to-One NAT^§ • Multi-Net NAT • Virtual Server • Port Triggering^§ • NAT-DMZ • FTP/H.323/SIP/IPSec/PPTP ALG, UPnP
Security	• SPI Firewall • VPN Passthrough • FTP/H.323/PPTP/SIP/IPsec ALG • DoS Defence, Ping of Death • Local Management
Session Limit	IP-based Session Limit

VPN
IPsec VPN	• 20 IPsec VPN Tunnels • LAN-to-LAN, Client-to-LAN • Main, Aggressive Negotiation Mode • DES, 3DES, AES128, AES192, AES256 Encryption Algorithm • IKEv1/v2 • MD5, SHA1 Authentication Algorithm • NAT Traversal (NAT-T) • Dead Peer Detection (DPD) • Perfect Forward Secrecy (PFS)
PPTP VPN	• PPTP VPN Server • 10 PPTP VPN Clients** • 16 Tunnels • PPTP with MPPE Encryption
L2TP VPN	• L2TP VPN Server • 10 L2TP VPN Clients** • 16 Tunnels • L2TP over IPSec
OpenVPN	• OpenVPN Server* • 10 OpenVPN Clients^△ • 16 OpenVPN Tunnels

AUTHENTICATION
Web Authentication	• No Authentication • Simple Password* • Hotspot（Local User / Voucher* / SMS* / Radius） • External Radius Sever • External Portal Sever • Facebook*

Management Features
Omada App	Yes. Requiring the use of OC300, OC200, Omada Cloud-Based Controller, or Omada Software Controller.
Centralized Management	• Omada Cloud-Based Controller • Omada Hardware Controller (OC300) • Omada Hardware Controller (OC200) • Omada Software Controller
Cloud Access	Yes. Requiring the use of OC300, OC200, Omada Cloud-Based Controller, or Omada Software Controller.
Service	Dynamic DNS (Dyndns, No-IP, Peanuthull, Comexe)
Maintenance	• Time Setting • Diagnostic • Firmware Upgrade • Factory Defaults/Reboot • Backup&Restore • System Log • Remote Management • Statistics • Controller Settings • SNMP
Zero-Touch Provisioning	Yes. Requiring the use of Omada Cloud-Based Controller.
Management Features	• Automatic Device Discovery • Intelligent Network Monitoring • Abnormal Event Warnings • Unified Configuration • Reboot Schedule • Captive Portal Configuration

OTHERS
Certification	CE, FCC, RoHS
Package Content	• Gigabti VPN Router ER605 • Power Adapter • RJ45 Ethernet Cable • Quick Installation Guide
System Requirements	Microsoft® Windows® 11, 10, 8, 7,Vista™, XP or MAC® OS, NetWare®, UNIX® or Linux
Environment	• Operating Temperature: 0–40 ℃ (32–104 ℉); • Storage Temperature: -40–70 ℃ (-40–158 ℉) • Operating Humidity: 10–90% RH non-condensing • Storage Humidity: 5–90% RH non-condensing
