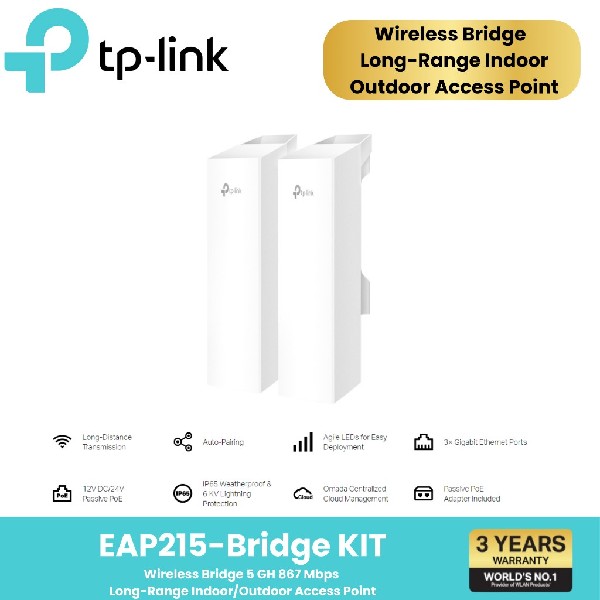

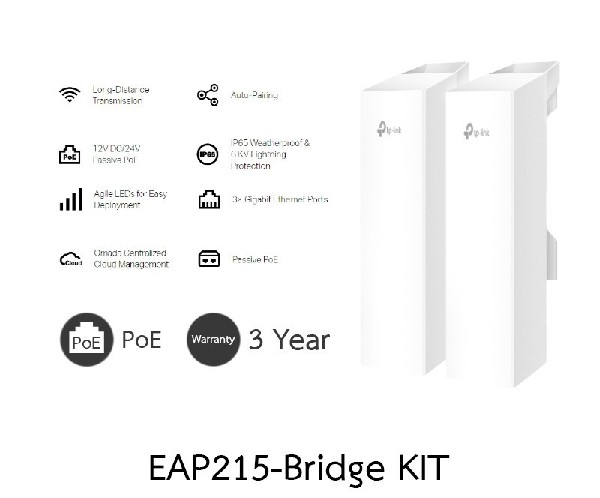

TP-LINK EAP215-Bridge kit Omada 5GHz 867Mbps
3,990 บาท
มีสินค้าในสต็อก
Omada 5GHz 867Mbps Long-Range Indoor/Outdoor Wireless Bridge
- Up to 3.1 mi (5 km) Transmission Distance

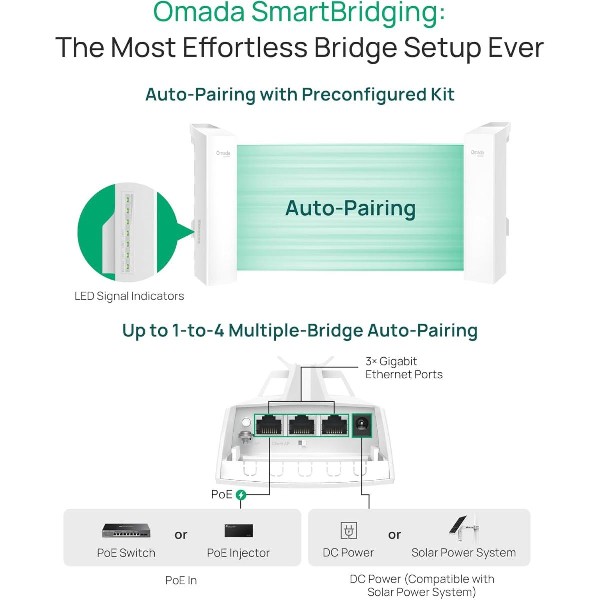

- Equipped with Omada SmartBridging: Our unique design for the most effortless and easy bridge setup ever.
- Plug-and-Play with Preconfigured Kit: Preconfigured for instant auto-pairing, the bridges deliver instant connectivity right out of the box.
- Unique Design for Instant Multi-Bridge Auto-Pairing: Effortlessly connect multiple bridges with PtMP Auto-Pairing.
- App-Guided Alignment: Visualized App-Guided Alignment for Long-Distance Setups and Instant Speed Testing for Installation Verification.
- Flexible Power Supply: 802.3af PoE, 24V Passive PoE, and 12V DC (compatible with TP-Link solar power supply system)

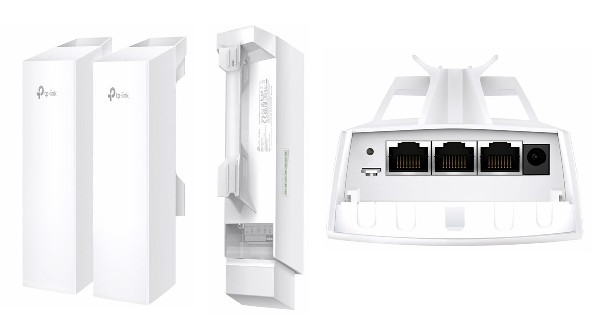

- 3× Gigabit Ethernet Ports: Connects more cameras and devices without an extra switch
- Built for Tough Outdoor Conditions: IP65 weatherproof enclosure and operating range of -40 °C to +70 °C.
- Remote Monitoring & Management : Standalone mode or Omada SDN mode for remote centralized management via Web UI or App
HARDWARE FEATURES Interface 3x Gigabit Ethernet Ports Button Reset DIP Switch Role Switch Power Supply 12V DC / 802.3af PoE / 24V Passive PoE Max. Power Consumption 11.5W Dimensions ( W x D x H ) 3.1 × 2.4 × 10.9 in (79 × 60 × 276 mm) Antenna Internal 2×2 Dual-polarized directional MIMO antennas
5 GHz: 14.0 dBi
Horizontal:43°, Vertical: 18°Weatherproof Enclosure IP65 Mounting Pole and wall mounting ( Pole accessories included) WIRELESS FEATURES Coverage 5,000 m (3.1 mi) Wireless Standards IEEE 802.11 a/n/ac Frequency 5 GHz Signal Rate 5 GHz: Up to 867 Mbps Wireless Functions • MU-MIMO: 5G 2x2 MU-MIMO DL
• Multiple SSIDs:8
• Wireless Statistics
• Wireless Schedule
• Reboot Schedule
• RADIUS Accounting
• Static IP/Dynamic IP
• Rate Limit
• Guest Network
• Enable/Disable Wireless Radio
• Enable/Disable SSID BroadcastWireless Security • VLAN
• Rogue AP Detection
• Maximum number of MAC Filter: 4,000
• Wireless EncryptionTransmission Power • CE:
<23dBm (5 GHz, band 1/2, EIRP)
<30dBm (5 GHz band3, EIRP)
• FCC:
<23.5dBm (5 GHz band1)
<25dBm (5 GHz band4)Management Features Omada App Yes Restore & Backup Yes Firmware update via Web Yes NTP Yes Centralized Management • Omada Cloud-Based Controller
• Omada Hardware Controller
• Omada Software ControllerCloud Access Yes. Require the use of an Omada Controller. Email Alerts Yes LED ON/OFF Control Yes SNMP Yes SSH Yes Web-based Management Yes Zero-Touch Provisioning Yes OTHERS Certification CE, FCC, RoHS Package Content • EAP215-Bridge KIT
• Installation Guide
• Mounting KitLightning Protection • Air discharge: ±8kV
• Contact discharge: ±4kV
• Common mode 10/700: ±6kVEnvironment • Operating Temperature: -40 °C–70 °C (-40 °F–158 °F);
• Storage Temperature: -40 °C–70 °C (-40 °F–158 °F);
• Operating Humidity: 10%–90% non-condensing;
• Storage Humidity: 5%–90% non-condensing
