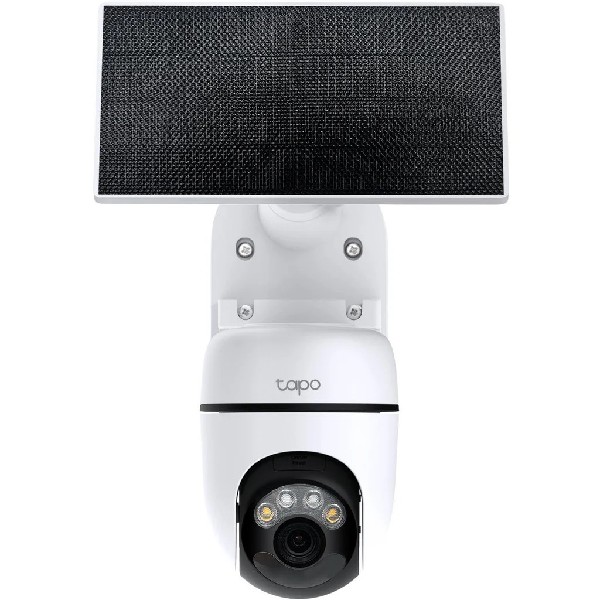

TAPO C630 KIT 3K/5MP SOLAR-POWERED PAN/TILT

CAMERA
Image Sensor	1/2.7" Progressive Scan CMOS Sensor
Lens	Focal Length: 4.0 mm Aperture: F1.6 Field of View: 105.4° (Diagonal), 88.0°(Horizontal), 46.0°(Vertical)
Night Vision	Infrared Night Vision (52 ft / 16 m) Color Night Vision (52 ft / 16 m)
Lighting	2× Built-in Spotlights
Interface & Button	1× Power Button 1× RESET Button 1× MicroSD Card Slot (Up to 512GB)
Pan/Tilt Range	Pan Mechanical Range: 340° (360° Pan Coverage) Tilt Mechanical Range: 90° (130° Tilt Coverage)

SOLAR PANEL
Connection Capacity	A solar panel can only connect to one camera.
Output Port	Type-C

VIDEO & AUDIO
Maximum Resolution	3K 5MP (2880 × 1620 px)
Frame Rate	15 fps
Digital Zoom	13.5
Video Compression	H.264
Live View	YES
Image Enhancement	3DNR WDR
Audio Input & Output	Built-in Microphone and Speaker
Audio Communication	Two-Way Audio with Noise Cancellation
Siren Volume	78.9 dBA (Level measured at 10 cm distance)

STORAGE
Local Storage	MicroSD Card Slot on Camera (Up to 512 GB, microSD card not included)
Cloud Storage	Tapo Care Cloud Storage Services (Subscription required)

DETECTION and NOTIFICATIONS
Sensor	Motion Sensor Ambient Light Sensors
AI Detection	Motion Detection Person Detection Vehicle Detection Pet Detection
Activity Zones	Yes
Output Notification	System Notification System Notification with Snapshot (Tapo Care Services)

NETWORK
Network Connectivity	Connect via Wi-Fi
Wireless Connectivity	IEEE 802.11b/g/n, 2.4 GHz Wi-Fi

SECURITY
Security	128-bit AES Encryption with SSL/TLS WPA/WPA2-PSK

POWER
Power Source	5V DC Power Adapter (Not Included) 6700 mAh Built-in Rechargeable Lithium-ion Battery Solar Panel: Tapo A201
Input Voltage	5.0 V, 2.0 A
Output Voltage	/

GENERAL
Smart Integration	Google Assistant, Amazon Alexa
Weather Resistance	IP65 for both camera and solar panel
System Requirements	Tapo App: iOS 12.0 or higher, Android 7.0 or higher
Mounting Options	Wall-Mounted Eave-Mounted Pole-Mounted (Pole-Mounting loops required but not included)
Operating Temperature	-20°C to 45°C (-4°F to 113°F)
Storage Temperature	-40°C to 60°C (-40°F to 140°F)
Operating Humidity	10%~90% RH, Non-condensing
Storage Humidity	0%~90% RH, Non-condensing
Charging Temperature	0°C to 45°C (32°F to 113°F)
Dimensions ( W x D x H )	Camera Dimensions: 141 x 128 x 84 mm (5.55 x 5.04 x 3.31 in) Solar Panel Dimensions: 173.4 x 120.4 x 15.7 mm (6.83 x 4.74 x 0.618 in)
Package Content	Tapo C630 Camera × 1 Tapo A201 Solar Panel × 1 Tapo A201 Solar Panel Bracket × 1 Base Cover × 1 USB Adapter Cable × 1 Extension Wire × 1 Cable Zip Tie × 1 Mounting Screws and Anchors Mounting Template Stickers Quick Start Guide
Certifications	CE, FCC, JRF, VCCI, RCM, NTRA, NCC, BSMI, DOE, CEC, IP65, RoHS
