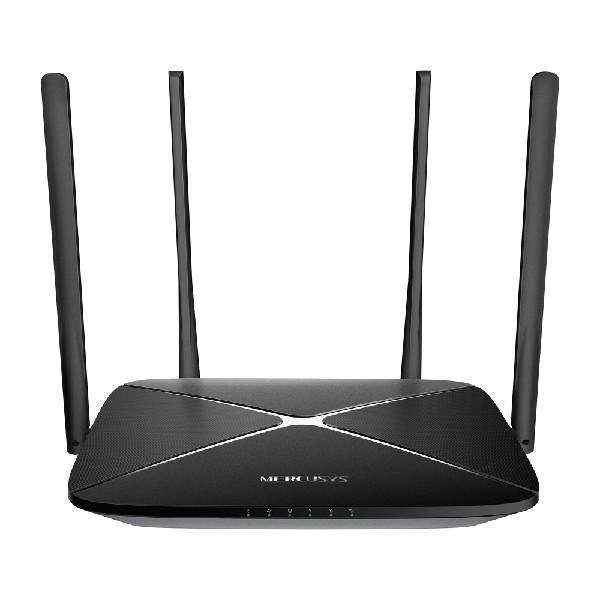

MERCUSYS MB115-4G N300

ราคา 990 บาท

สินค้าคงเหลือ : 50



MB115-4G


New Comers

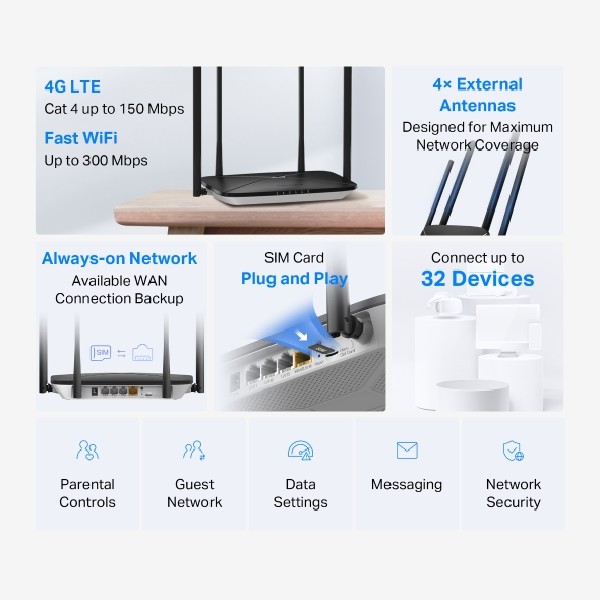

300 Mbps Wireless N 4G LTE Router

  • 4G network – Share internet access with up to 32 Wi-Fi devices and enjoy download speeds of up to 150 Mbps

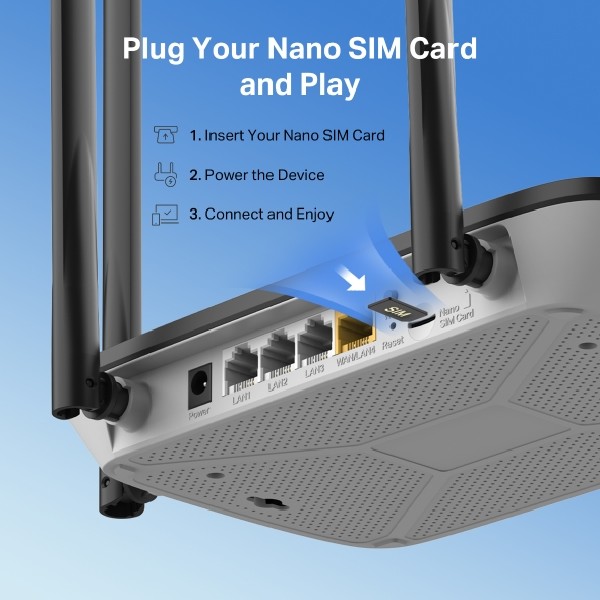

  • Plug a SIM card and play – No configurations needed, compatibility of SIM cards are assured by years of field tests*
  • 300 Mbps WiFi – Fast WiFi speeds up to 300 Mbps to share your network.
  • Maximum Network Coverage – Enjoy stable and efficient connections to every device thanks to the four external antennas
  • Wi-Fi router mode – Plug an Ethernet cable into the LAN/WAN port for flexible access if you can't get a 4G connection
Wireless
Network Type


EU:
FDD-LTE: B1/B3/B5/B7/B8/B20/B28 (2100/1800/850/2600/900/800/700 MHz)
TDD-LTE: B38/B40 (2600/2300 MHz)
HSPA+/UMTS: B1/B5/B8 (2100/850/900 MHz)
CN:
FDD-LTE: B1/B3/B5/B8 (2100/1800/850/900 MHz)
TDD-LTE: B38/B40 (2600/2300 MHz)
HSPA+/UMTS: B1/B5/B8 (2100/850/900 MHz)


Wi-Fi Class


N300


Wi-Fi (2.4 GHz)


300 Mbps


Wireless Standards


IEEE 802.11b/g/n


Frequency


2.4 GHz


Reception Sensitivity


11g 54M: -74.5 dBm
11n HT20 MCS7: -73.5 dBm
11n HT40 MCS7: -70.5 dBm


Transmission Power


< 20 dBm (2.4 GHz)


Wireless Security


WPA-PSK / WPA2-PSK


Wireless Functions


smart connect
WPS
Wireless Schedule
Wireless Clients Statistics

Hardware
Dimensions


 219 × 140 × 32 mm

(8.62 × 5.51 × 1.26 in)

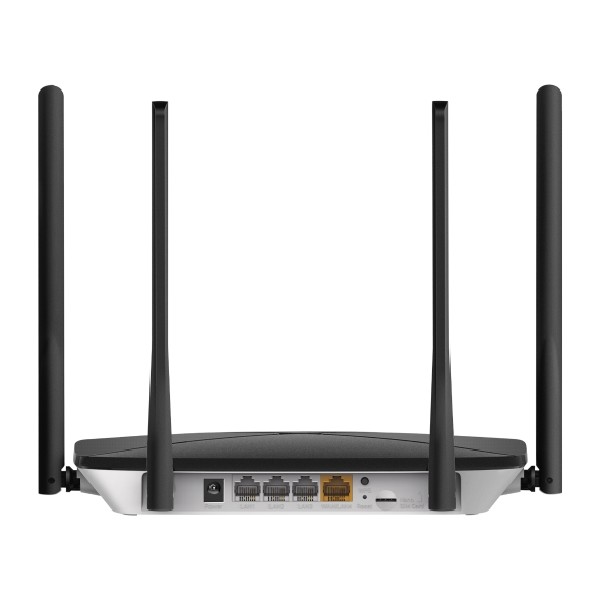

Interfaces


1× 10/100Mbps LAN/WAN Port

3× 10/100Mbps LAN Ports

1× Nano SIM Card Slot


Antenna


2× External 4G LTE Antennas,
2× External Wi-Fi Antennas


Button


WPS、Reset Button


External Power Supply


9V/0.85A


LED


1× Power
1× Internet
1× LAN
3× Signal


LTE Standard


Cat 4
150/50Mbps DL/UL

Software
Operation Mode


3G/4G Router
Wireless Router


Cellular Mode


4G Preferred
4G Only
3G Only


Cellular APN


Data Roaming
Network Search
Profile Create
APN Settings
ISP File Upgrade
PIN Management


WAN Mode


Dynamic IP
Static IP
PPPoE
PPTP
L2TP


NAT Forwarding


ALG
Virtual Server
Port Triggering
UPnP
DMZ


Protocols


IPv4, IPv6


Data Settings


Data Statistics
Data Limit


Parental Controls


Time Control
Website Filtering


Guest Network


2.4 GHz Guest Network


DHCP


Server
DHCP Client List
Address Reservation


DDNS


MERCUSYS DDNS
DynDns
NO-IP


SMS


Inbox
New Message
Outbox
Drafts


Security


IPv4 SPI Firewall
Access Control
Service Filtering
IP & MAC Binding
IPv6 Firewall


System Settings


Time Settings
LED Control
Diagnostics
Firmware Upgrade
Backup&Restore
Reboot
Administration
System Log
CWMP Settings


Device Management


MERCUSYS APP
Web GUI


System Language


English
Spanish
Italian
Polish
Russian


TR-069


√

Others
Package Contents


300 Mbps Wireless N 4G LTE Router (MB115-4G)

Power Adapter

RJ45 Ethernet Cable

Quick Installation Guide


Environment


Operating Temperature: 0°C~40°C (32°F~104°F)

Storage Temperature: -40°C~60°C (-40°F~140°F)

Operating Humidity: 10%~90% Non-Condensing

Storage Humidity: 5%~90% Non-Condensing
